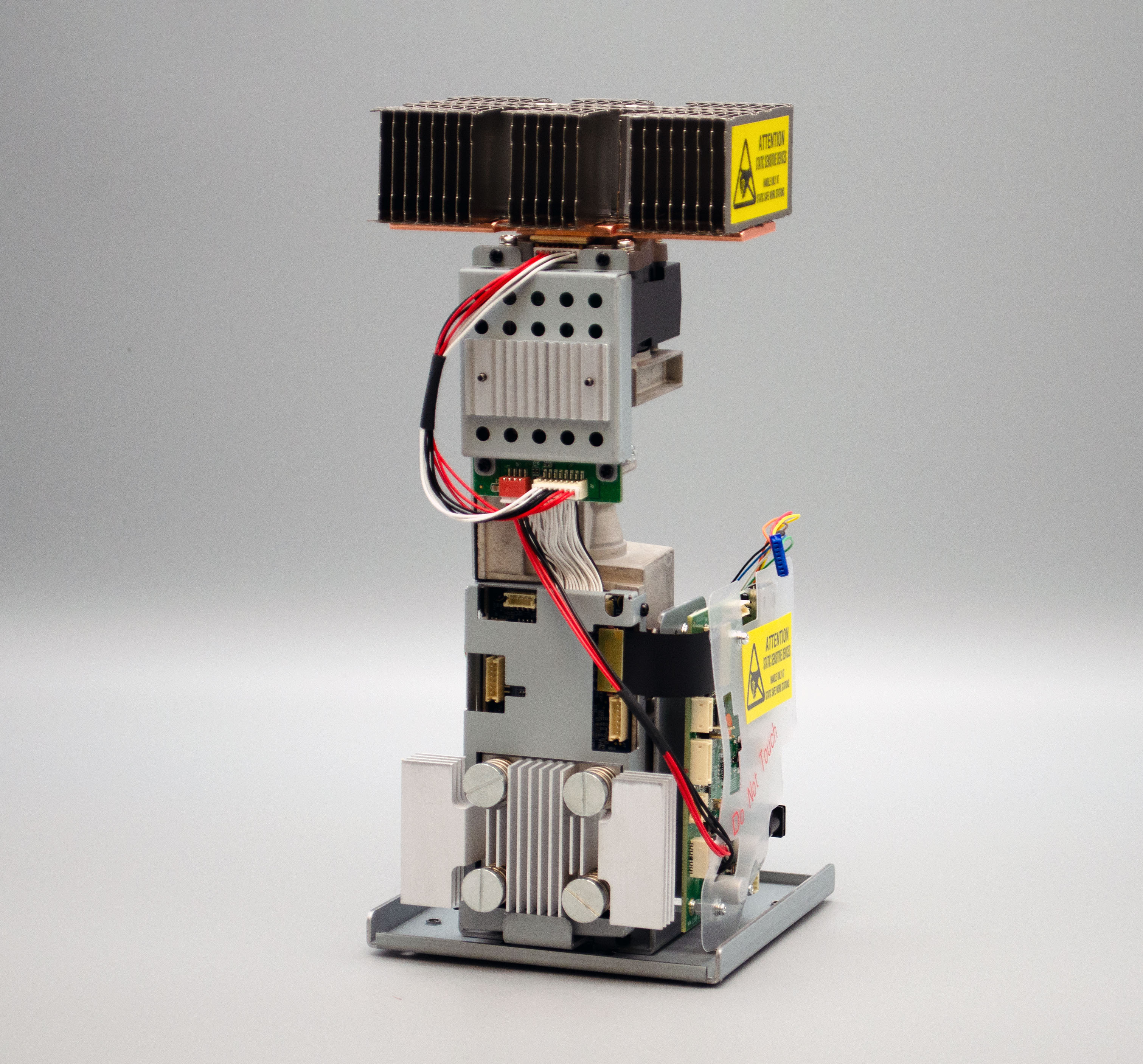

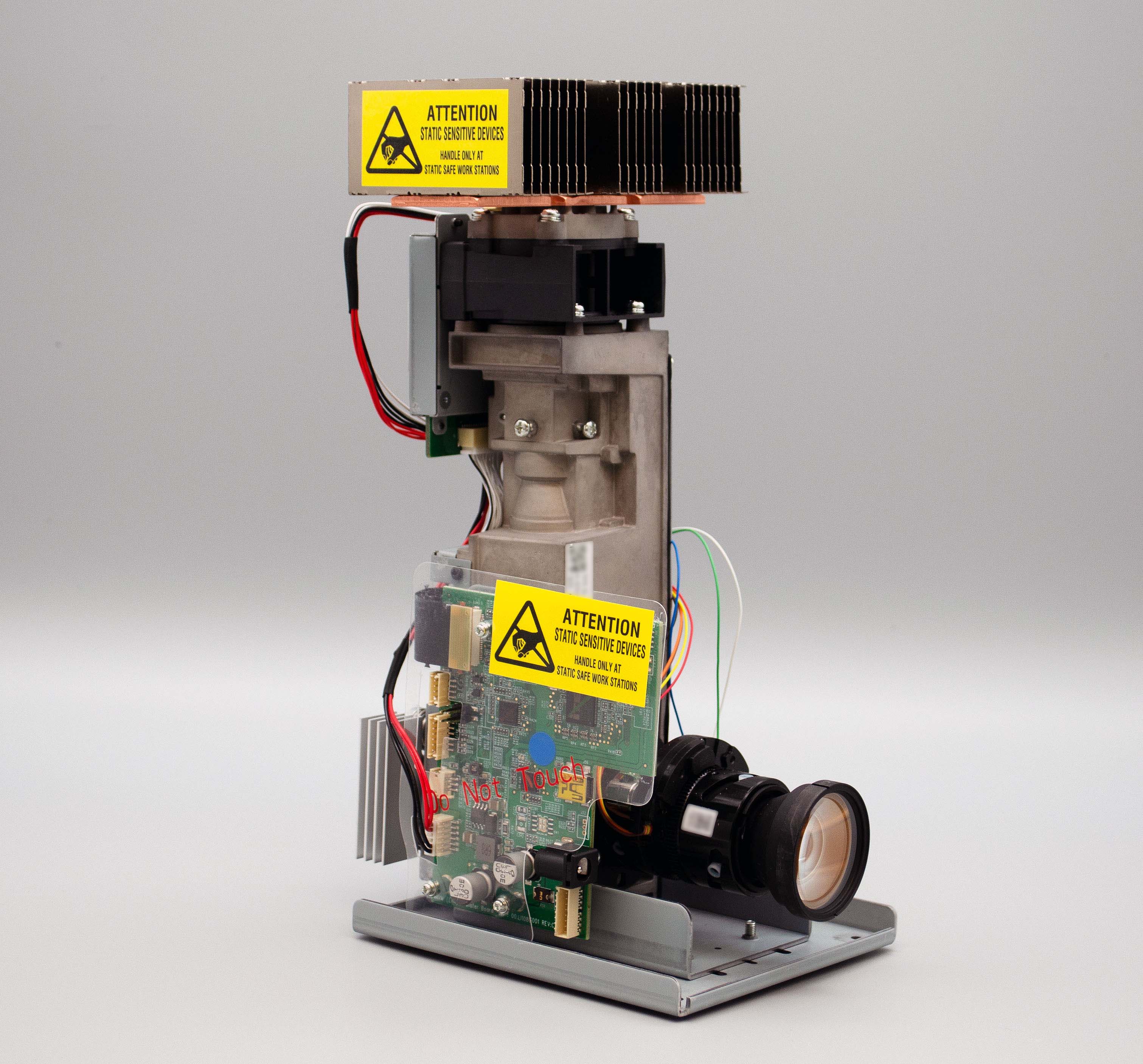

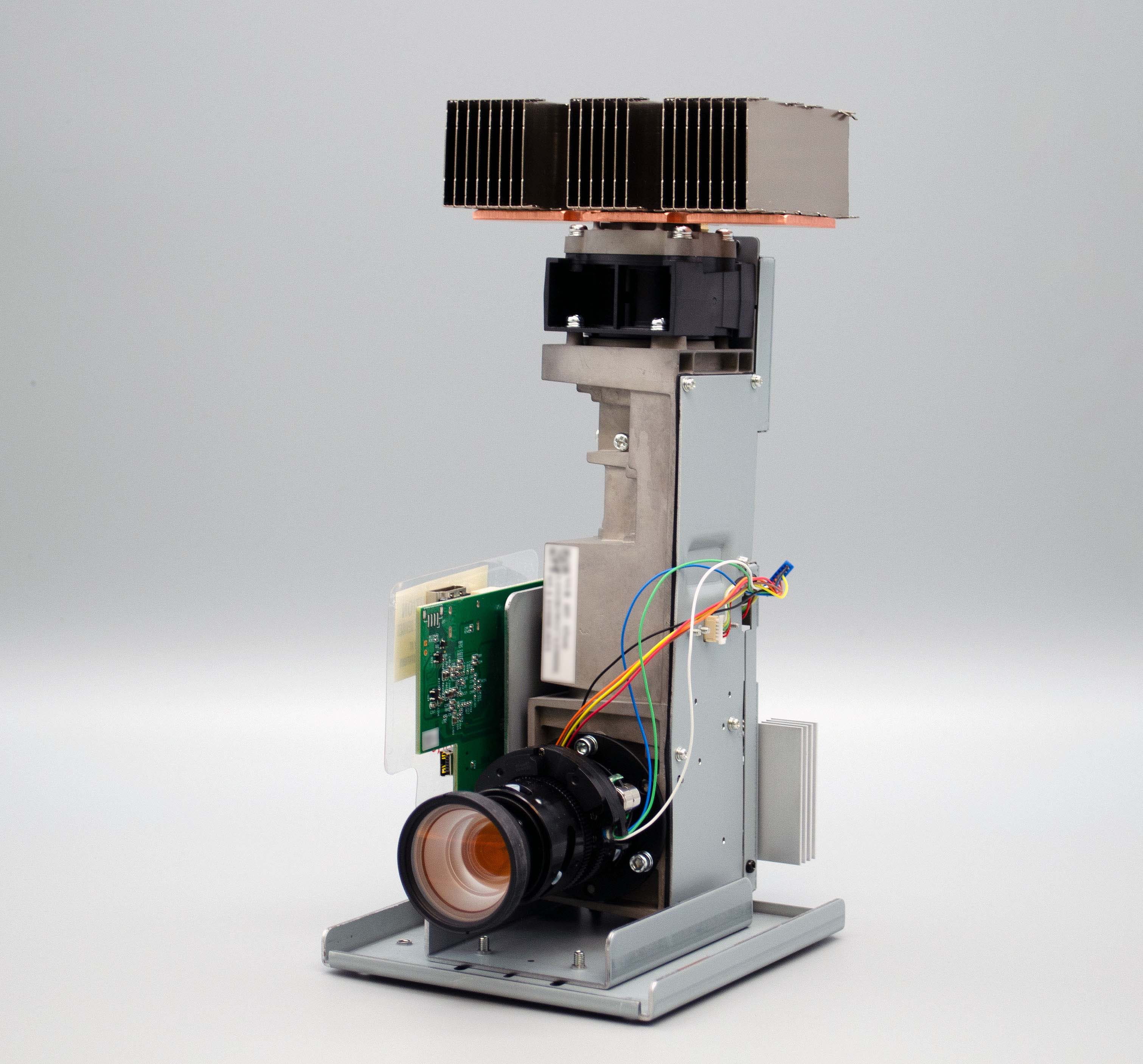

NVM2 / NVR2 / NVM2+ / NVR2+

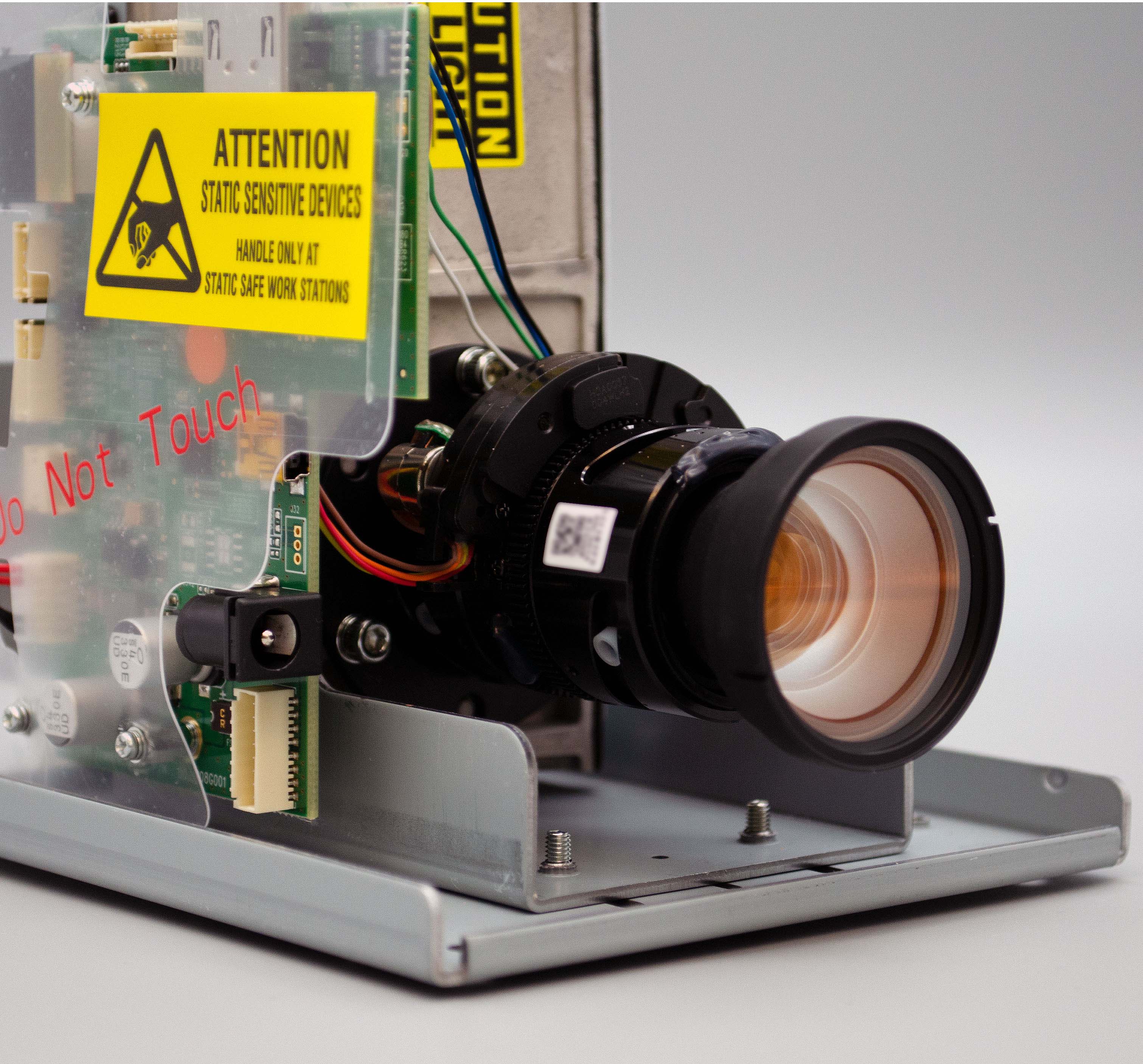

The core of the imaging system, the optical module, has high resolution and high image uniformity, allowing the printed objects to display sharp shapes and glossy surfaces. It is equipped with all-glass optical projection lenses, a unique coating and LEDs that achieve excellent optical performance.
High resolution DMD offers a great advantage in printing speed over others when integrating with new controllers.
Extra
Dimensions:
Due to its small size, the projection unit can be easily integrated into your DLP 3D printing solution!
Image size:
Image size specification: The NVM PLUS UV Engine supports the pixel size of the projected image
from 25um to 100um.
Optical mask:
Uniformity with mask is set to 90%, but it is also possible to achieve >95% if required
Application of the light engine
3D Printers - Especially used in jewelry, dentistry, research, industry, biology, etc.
Select options
NVM 2 | NVR 2
Series: Full HD
Wavelength: 405 / 385 nm
Resolution:
1920 x 1080
Image size:
57.6mm x 32.4mm(at 30um X/Y axis)
96.0 mm x 54.0 mm (at 50 um X/Y axis)
134.4mm x 75.6mm (at 70um X/Y axis)
192.0mm x 108.0mm (at 100um X/Y axis)
Output Power: 405 / 385 nm - 1500 mW
Interface: I2C, SPI, GPIO, USB, HDMI
Power Input: DC 12V/6A
NVM 2+ | NVR 2+
Series: Full HD
Wavelength: 405 / 385 / 365 nm
Resolution:
1920 x 1080
Image size:
57.6mm x 32.4mm(at 30um X/Y axis)
96.0 mm x 54.0 mm (at 50 um X/Y axis)
124.8 mm x 70.2 mm (at 65 um X/Y axis)
134.4mm x 75.6mm (at 70um X/Y axis)
192.0mm x 108.0mm (at 100um X/Y axis)
Output Power:
405 / 385 nm - 1800 mW
365 nm - 800 mW
Interface: I2C, SPI, GPIO, USB, HDMI
Power Input: DC 12V/6A
DLP 3D printer
Miicraft series
