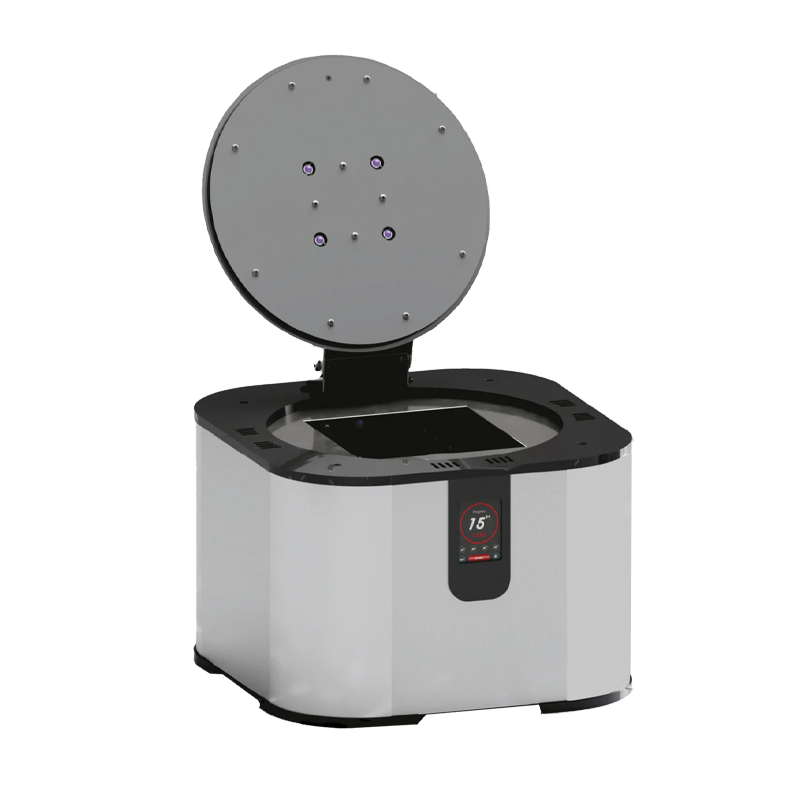

MiiCure - UV Curing System
UV LED with Nitrogen System
MiiCure is the polymerizer with compact dimensions but with incredible performance thanks to its two wavelengths that irradiate the resins on all six sides. Once you have selected the right UV power and the right temperature, all you have to do is admire the result.
Characteristics Miicure
MiiCure with powerful LED mapping and an intelligent management system. The connection to the PC facilitates and organizes your work. You can create your favorite programs and send them to the MiiCure, which makes them available on the display at any time.
MiiCure always creates a report of the work done and keeps it for further tracking. It manages countless pre-installed programs and is easily updated when new programs are available. Everything will be easy for your work.
Characteristics Miicure + Nitrogen
The inert gas injection system in the chamber increases the polymerization rate, increases the penetration of UV rays by up to 3 mm compared to the conventional system and makes the product biocompatible according to a certified workflow.
3 wavelengths
Adjustable LED power
Gas injection into the chamber before polymerization (pre-gas) and gas refill during polymerization
Temperature control in the chambers
Management dashboard via PC
Pre-stored curing programs certified by resin producers
Updatable treatment programs
Workflow logs
Compatibility with all 3D resins, including transparent
Managing custom programs
Management of favorite programs, always available on the touchscreen display
Compatibility with Industry 4.0
technical specifications Miicure
External dimensions: 320 x 330 x 246
Compartment dimensions: 145×145×h120
Emitter type: High power LED 5W
Number of emitters: 30
Irradiance system: Omni-Ray 360 °
Radiation frequencies: 3
Wavelength: λ1 405nm - λ2 365nm - λ2 385nm
Emission opening: +/- 5nm
Heating: Eco-passive
Power supply: external
technical specifications Miicure with nitrogen
External dimensions: 320 x 330 x 246
Compartment dimensions: 145×145×h120
Emitter type: High power LED 5W
Number of emitters: 30
Emitter Power: 100W
Irradiance system: Omni-Ray 360 °
Radiation frequencies: 3
Wavelength: λ1 405nm - λ2 365nm - λ2 385nm
Heating system
Heating: Eco-passive
Select options
Post exposure 2 versions

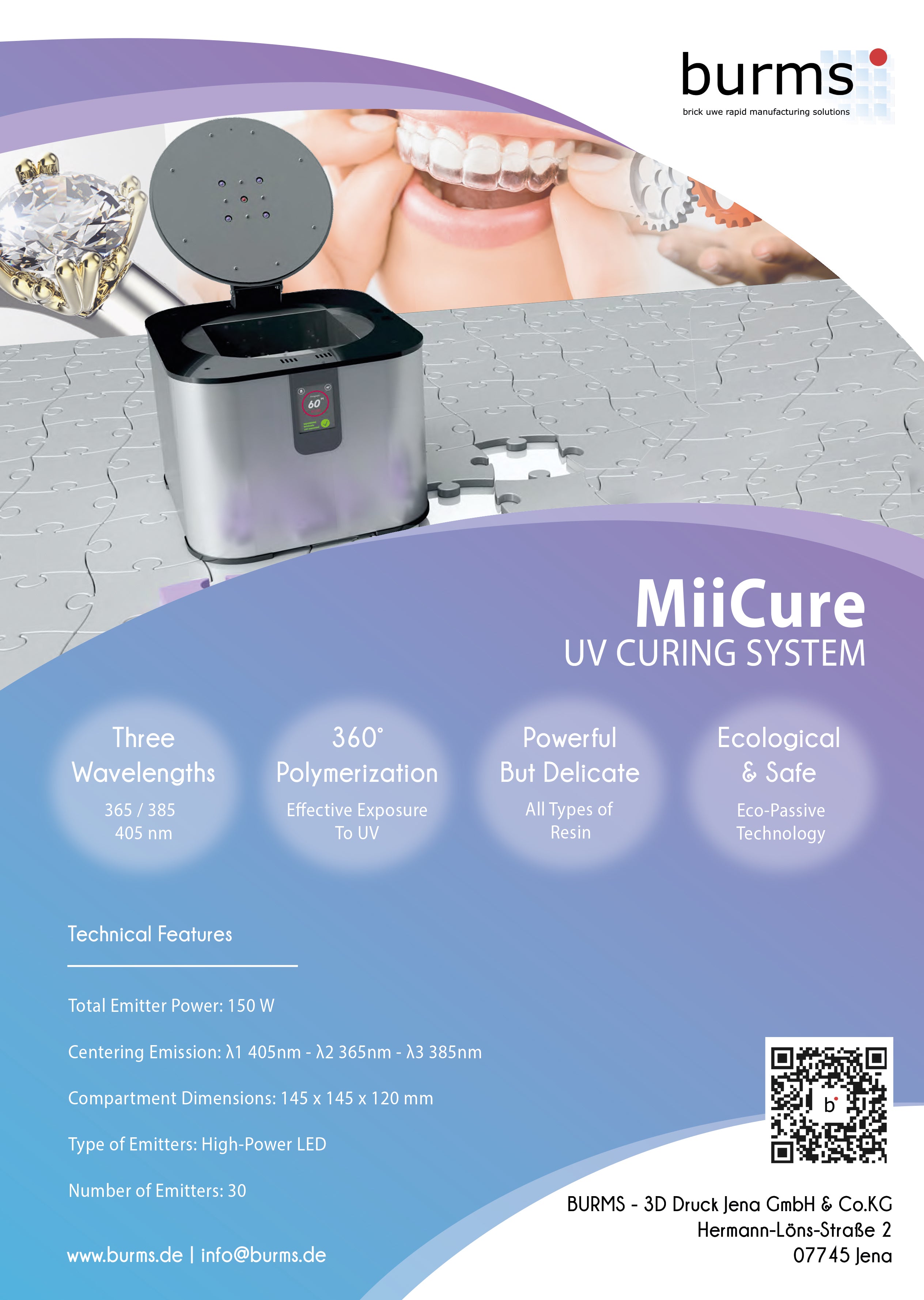

MiiCure

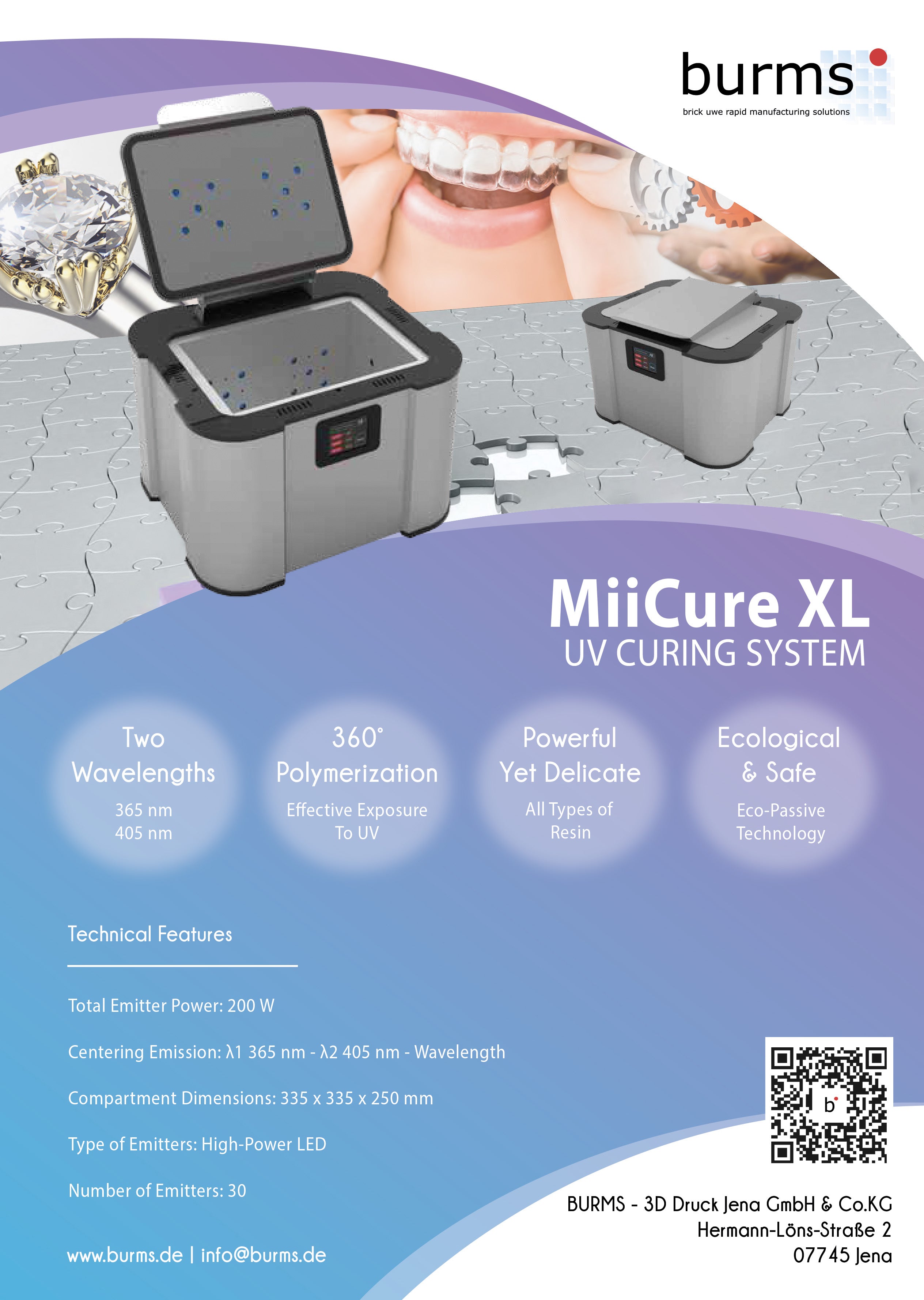

MiiCure XL
