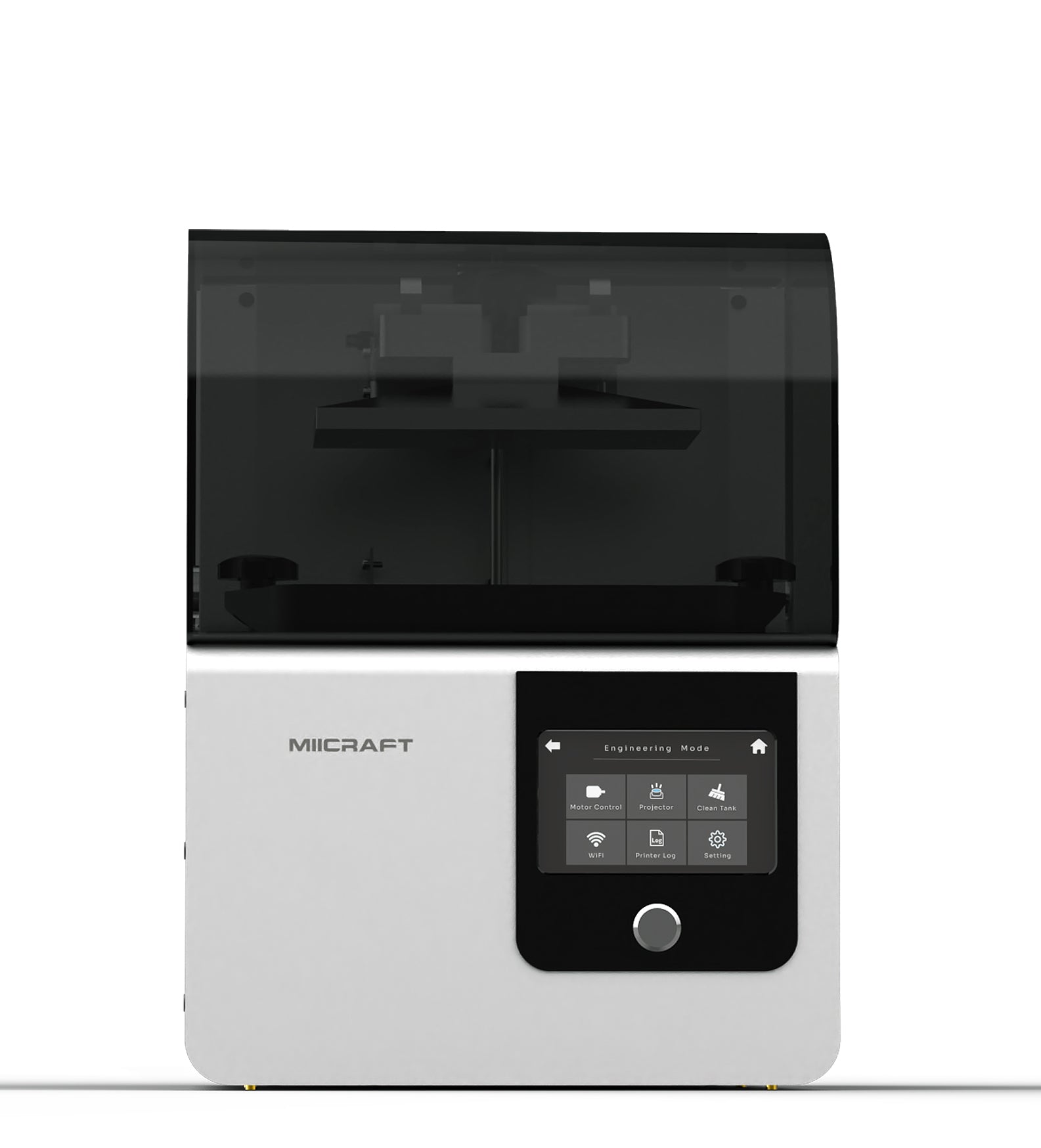

MiiCraft Alpha
The new DLP 3D desktop printer impresses with its compact design and is ideal for use in dental clinics and offices. It is available in two versions - 2K with 1980 x 1080 pixels and 2.5K with 2560 x 1440 pixels - both equipped with the advanced XPR™ -Technology that enables highly precise printing results.

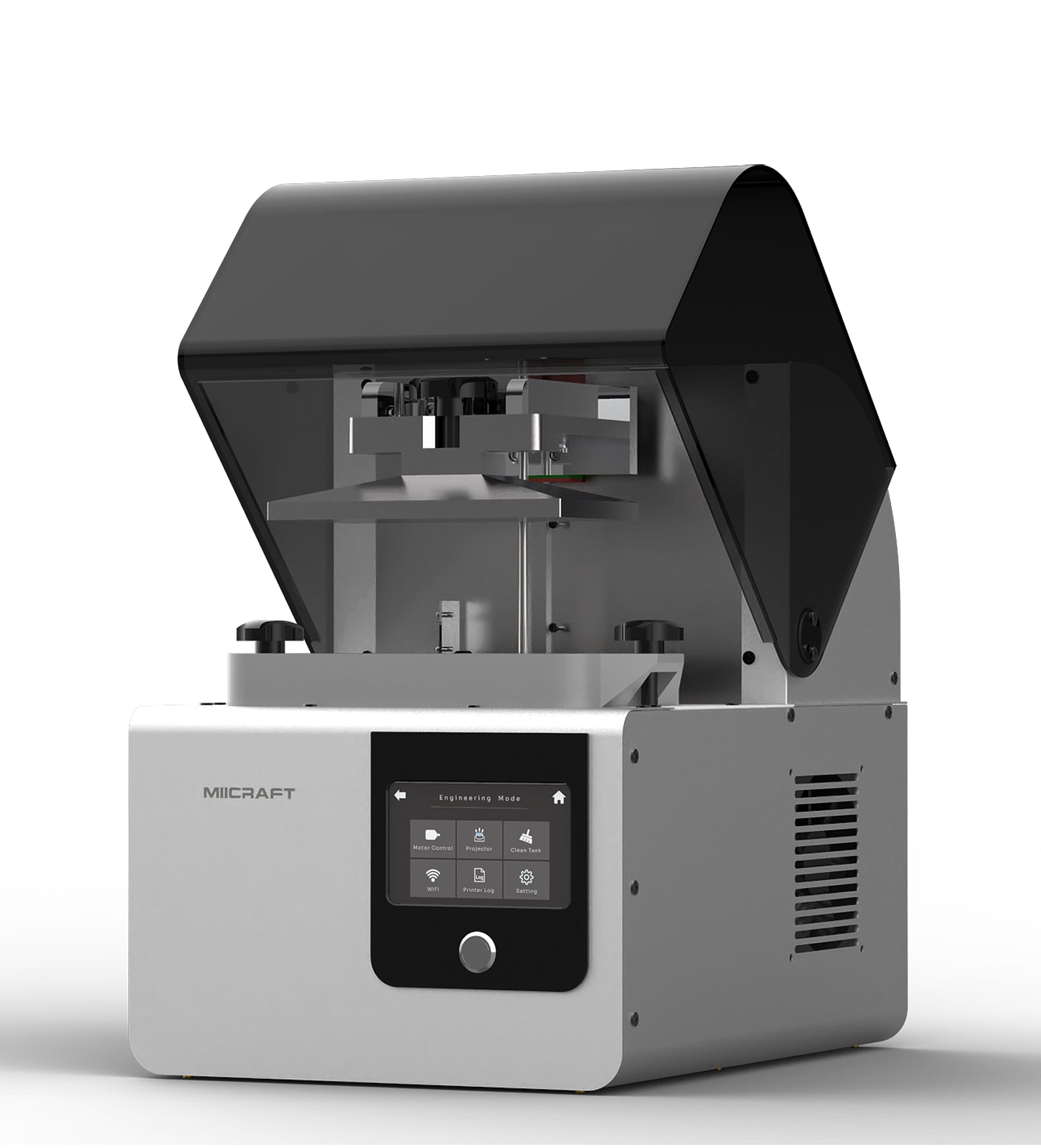

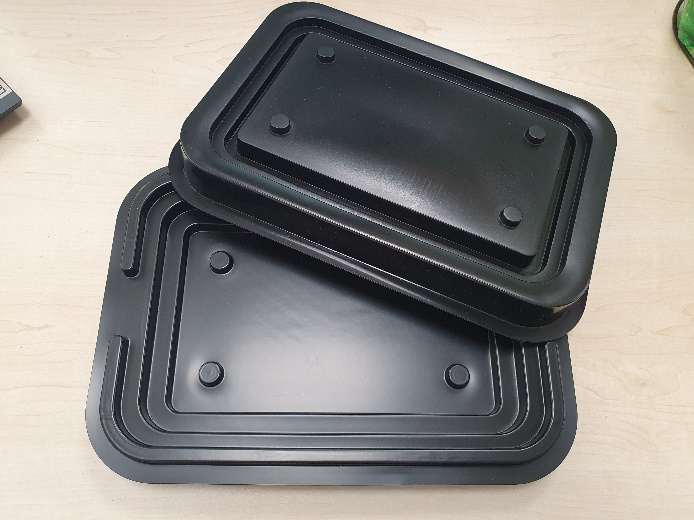

The user-friendly design of the build platform and resin tank ensure easy handling, while the three-sided open cover provides additional working space.
Specifications Alpha 2K
1980 x 1200 pixels with XPR™
Build area Alpha 130 x 73 x 75 mm @ 68 um
Z-layer resolution: 5-500um
Wavelength: 385 nm
UI: 5 inch touch screen
Dimensions: 30 x 40 x 42.26 cm / 16 kg
I/O: Ethernet, USB, WIFI dongle
Specifications Alpha
2560 x 1440 pixels with XPR™
Build area: 150 x 84.4 x 75 mm @ 58 um
Z-layer resolution: 5-500um
Wavelength: 405nm
UI: 5 inch touch screen
Dimensions: 30 x 40 x 42.26 cm / 16 kg
I/O: Ethernet, USB, WIFI dongle
Select options
RFID (material identification) can be selected as an option
Traceability of resin batches, printing platform and resin consumption.
Open to resin and third party software
Over 300 types of resin can be selected. Alpha is compatible with many third-party software.
High durability
The LED lifespan reaches more than 20,000 hours, as well as a tank lifespan of > 7.5 kg.
Excellent sharpness throughout the entire image
Superior optical design to achieve excellent sharpness MTF>50% and low distortion <0.1%.

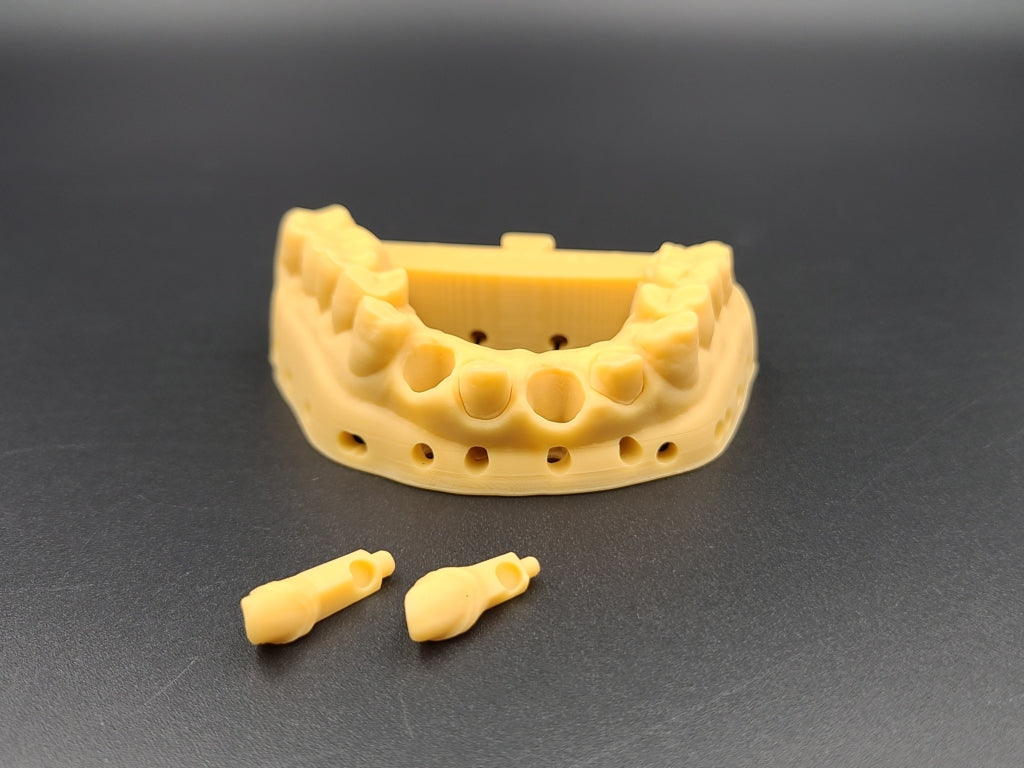

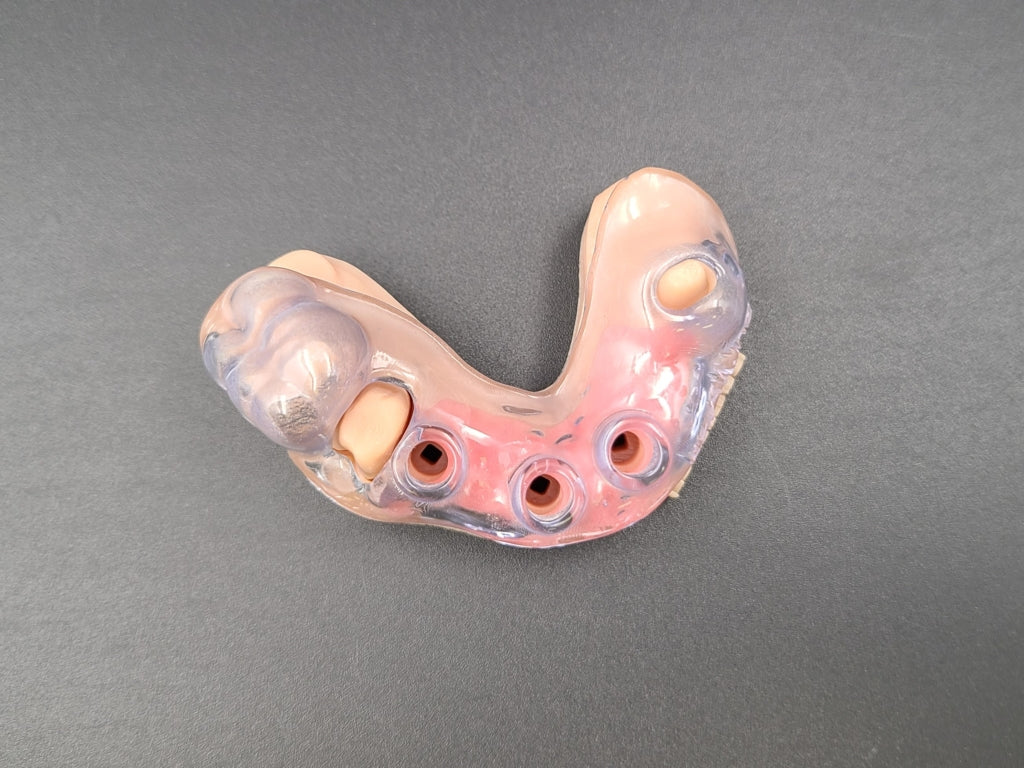

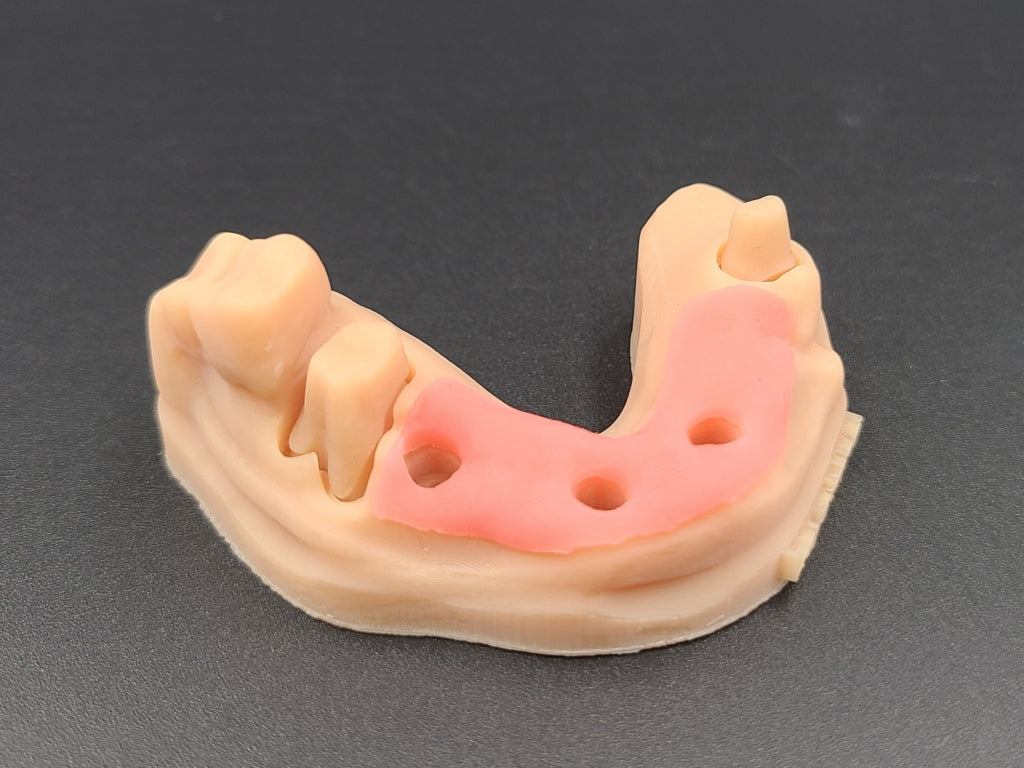

Dental field
alpha
Build area: 150 x 84.4 x 75 mm @ 58 um
Z-layer resolution: 5-500um
Wavelength: 405nm
UI: 5 inch touch screen
Dimensions: 30 x 40 x 42.26 cm / 16 kg
I/O: Ethernet, USB, WIFI dongle
Alpha 2K
Build area: 130 x 73 x 75 mm @ 68 um
Z-layer resolution: 5-500um
Wavelength: 385 nm
UI: 5 inch touch screen
Dimensions: 30 x 40 x 42.26 cm / 16 kg
I/O: Ethernet, USB, WIFI dongle

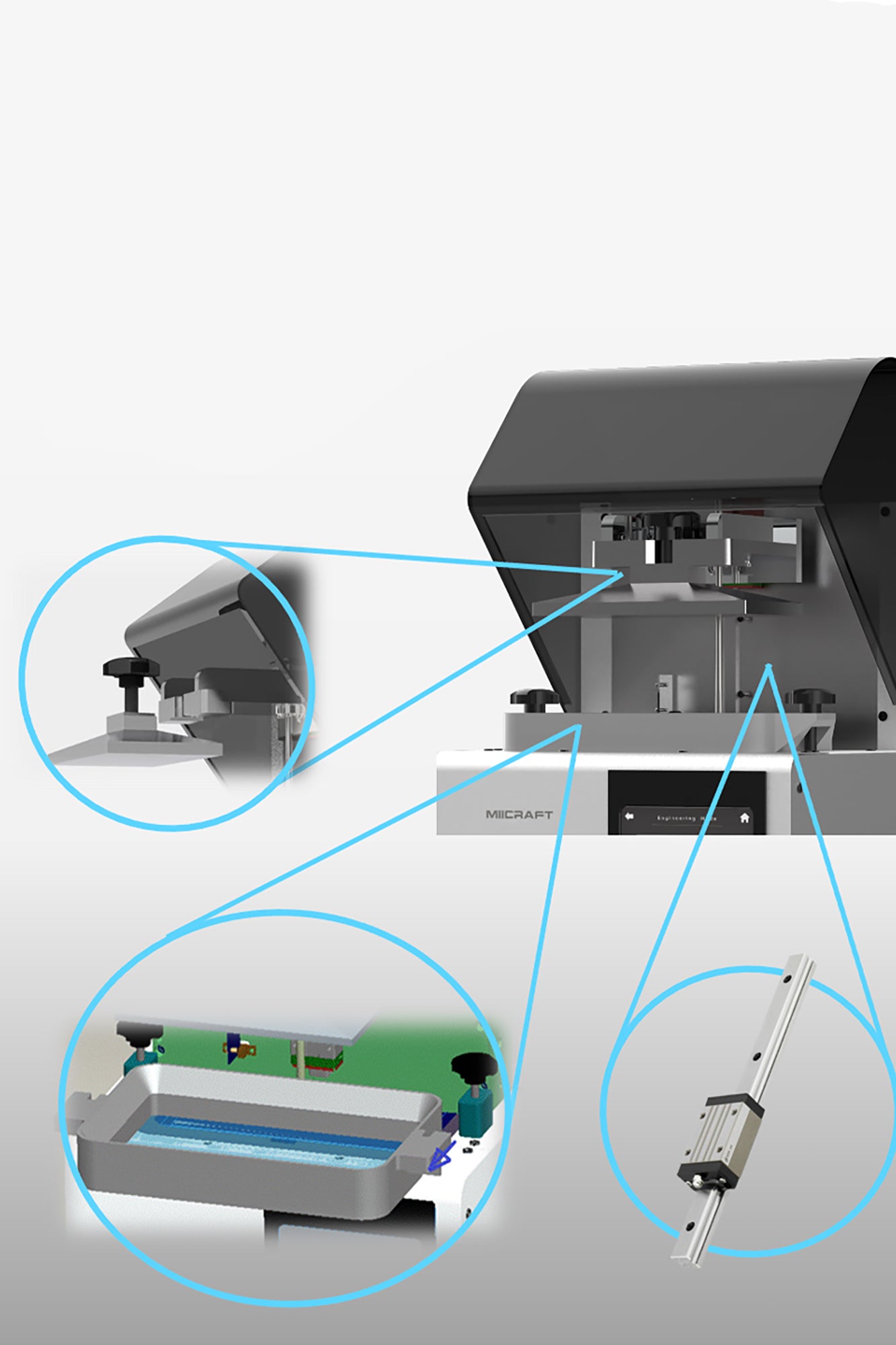

High speed - high precision
- The linear motion guide and new tank design improve the rigidity of the structure and improve the printing accuracy and speed

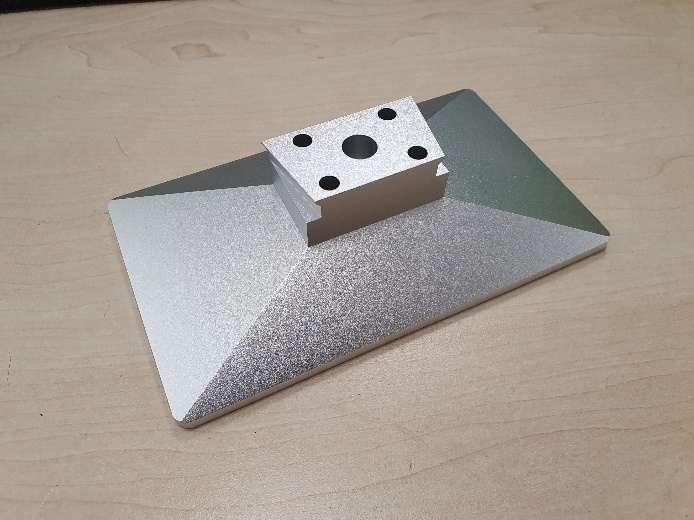

- To increase user-friendliness, the picker and tank are easily removable
- The three-sided open acrylic cover offers a spacious work area
- The innovative integration board increases printing and file transfer speed
Excellent sharpness throughout the entire image
- In-house developed dedicated UV light engine, optimal for industrial 3D printers (all glass)
- Deviation of each image corner ≤ 0.5 mm
- Homogeneity > 95 % ANSI (Optical Uniformity) and almost 100 % homogeneous after digital compensation
- High-precision image alignment and orientation correction process
